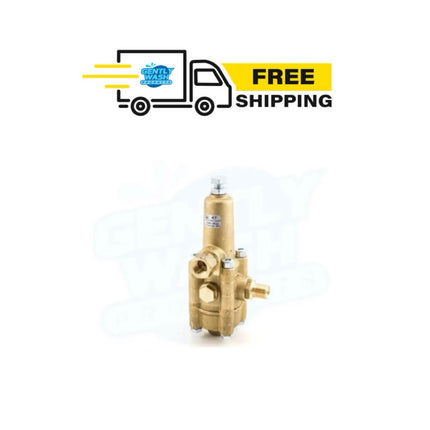

General Pump K-7 Unloader
**CHOOSE YOUR GPM**
This unloader has a flow-through design and should be mounted so that there is easy access to the adjusting bolt.
A pressure gauge should be installed on either side of the port of the unloader to accurately read pressure during adjustment.
A minimum of 5% bypass is required for proper operation.
The bypass hose needs to be rated for 300+ PSI to keep from blowing off or bursting. Securing the bypass hose is also recommended so it doesn’t move around when it goes into bypass.
Features:
- 0-3500 PSI
- Stainless and brass internal parts.
- Unique balance principle: eliminates high pressure in all lines while unit is in bypass mode.
- Eliminates pressure peaks normally generated by conventionally designed unloaders.
- No external moving parts or springs.
- Maximum Temperature: 165 F.
- Dual gauge ports.
- Inlet Port: 3/8" FPT.
- Outlet Port: 3/8" MPT.
- Bypass Port: 3/8" MPT.
